【开源】若依ruoyi-cloud 新建子模块记录

Maven多模块下新建子模块流程案例。

1、在ruoyi-modules下新建业务模块目录，例如：ruoyi-test。

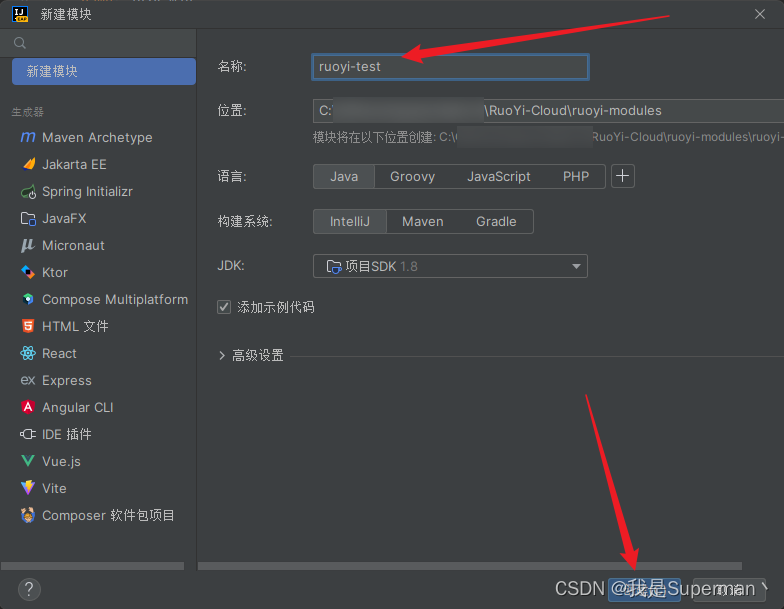

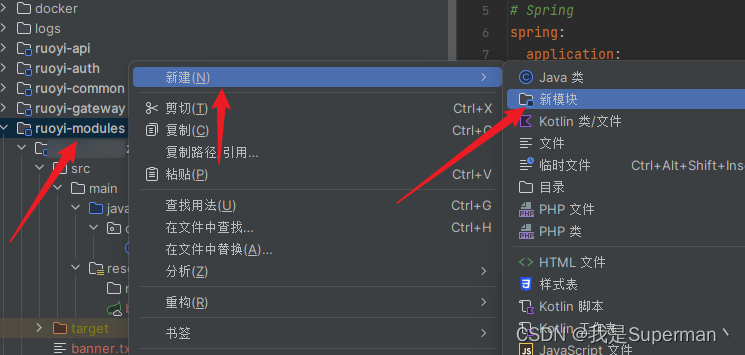

1 在ruoyi-modules下创建子模块





2 新建pom文件

在ruoyi-test业务模块下新建pom.xml文件以及src\main\java，src\main\resources目录

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>com.ruoyi</groupId>
        <artifactId>ruoyi-modules</artifactId>
        <version>3.6.1</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>ruoyi-modules-test</artifactId>

    <description>
        ruoyi-modules-test模块
    </description>

    <dependencies>

        <!-- SpringCloud Alibaba Nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!-- SpringCloud Alibaba Nacos Config -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>

        <!-- SpringCloud Alibaba Sentinel -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

        <!-- SpringBoot Actuator -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- Mysql Connector -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- RuoYi Common DataSource -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-datasource</artifactId>
        </dependency>

        <!-- RuoYi Common DataScope -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-datascope</artifactId>
        </dependency>

        <!-- Ruoyi Common Security -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-security</artifactId>
        </dependency>

        <!-- Ruoyi Common Swagger -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-swagger</artifactId>
        </dependency>

        <!-- RuoYi Common Log -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-log</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

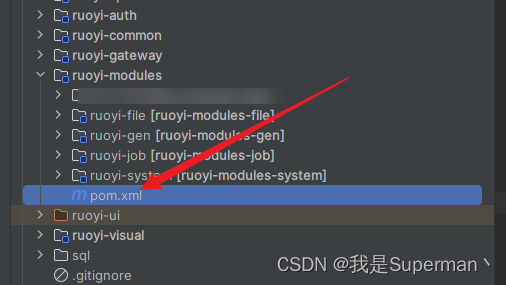

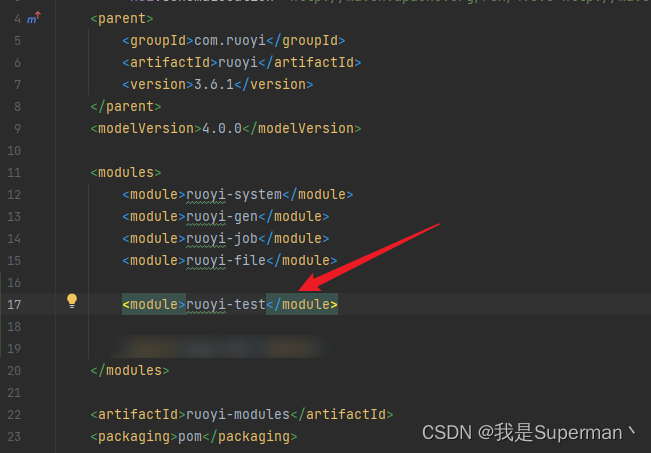

3 在ruoyi-modules目录下pom.xml模块节点modules添加业务模块

<module>ruoyi-test</module>





4、src/main/resources添加bootstrap.yml文件

# Tomcat
server:
  port: 9301

# Spring
spring:
  application:
    # 应用名称
    name: ruoyi-test
  profiles:
    # 环境配置
    active: dev
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: 127.0.0.1:8848
      config:
        # 配置中心地址
        server-addr: 127.0.0.1:8848
        # 配置文件格式
        file-extension: yml
        # 共享配置
        shared-configs:
          - application-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}

5、com.ruoyi.test包下添加启动类

package com.ruoyi.test;

import org.springframework.boot.SpringApplication;
import org.springframework.cloud.client.SpringCloudApplication;
import com.ruoyi.common.security.annotation.EnableCustomConfig;
import com.ruoyi.common.security.annotation.EnableRyFeignClients;
import com.ruoyi.common.swagger.annotation.EnableCustomSwagger2;

/**
 * 测试模块
 *
 * @author ruoyi
 */
@EnableCustomConfig
@EnableCustomSwagger2
@EnableRyFeignClients
@SpringCloudApplication
public class RuoYiTestApplication
{
    public static void main(String[] args)
    {
        SpringApplication.run(RuoYiTestApplication.class, args);
        System.out.println("(♥◠‿◠)ﾉﾞ  测试模块启动成功   ლ(´ڡ`ლ)ﾞ  \n" +
                " .-------.       ____     __        \n" +
                " |  _ _   \\      \\   \\   /  /    \n" +
                " | ( ' )  |       \\  _. /  '       \n" +
                " |(_ o _) /        _( )_ .'         \n" +
                " | (_,_).' __  ___(_ o _)'          \n" +
                " |  |\\ \\  |  ||   |(_,_)'         \n" +
                " |  | \\ `'   /|   `-'  /           \n" +
                " |  |  \\    /  \\      /           \n" +
                " ''-'   `'-'    `-..-'              ");
    }
}

Nacos相关配置操作

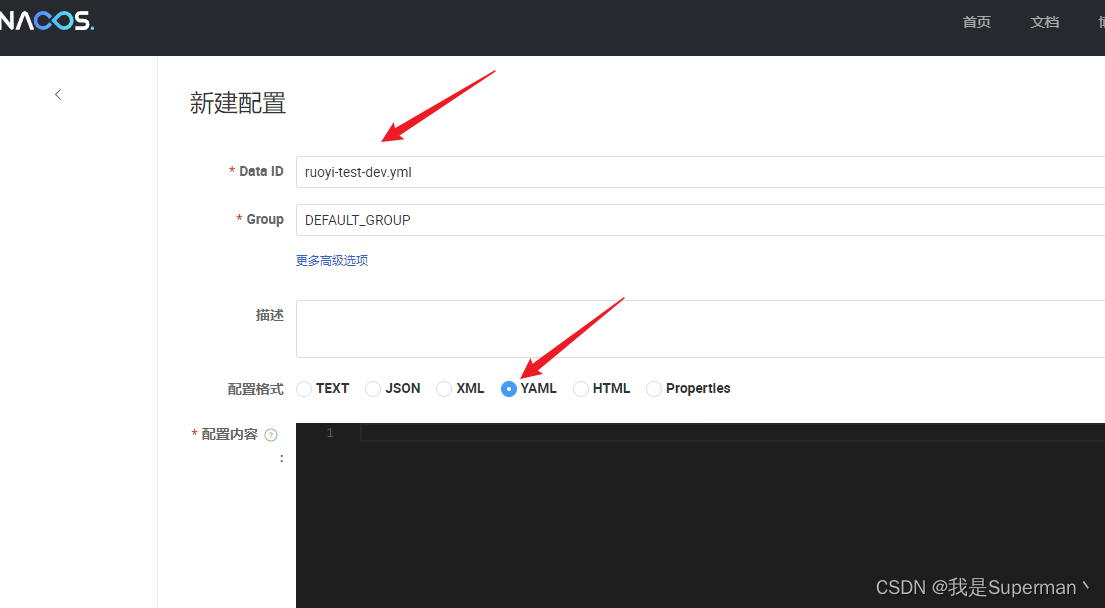

1 然后登陆nacos后台，右侧点击配置管理->配置列表，新增配置ruoyi-test-dev.yml
配置类型选择yxml

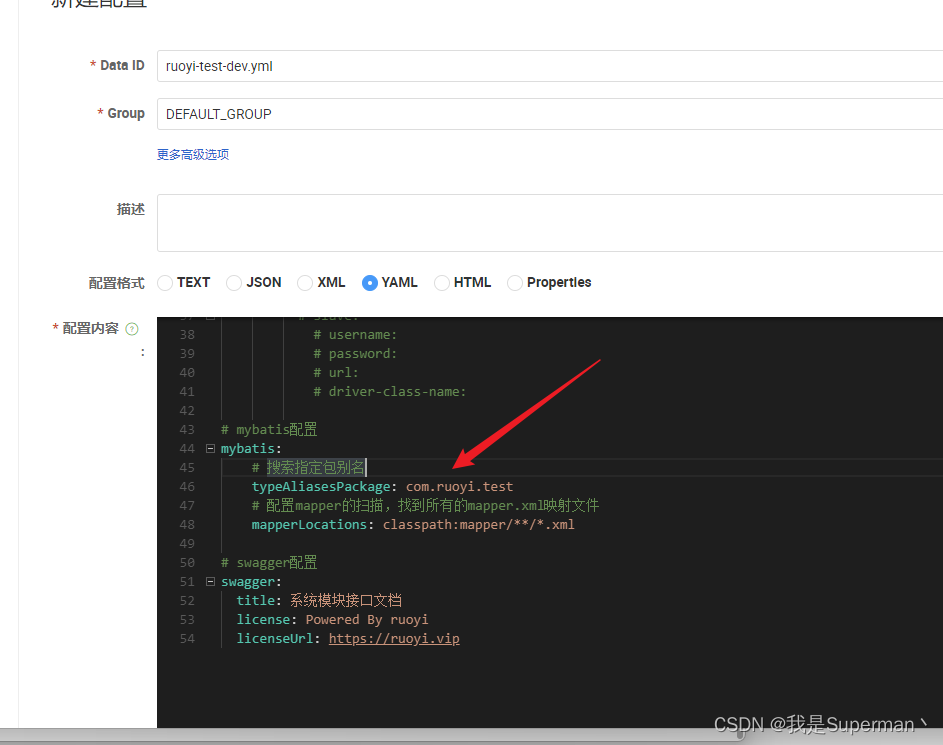

复制ruoyi-system-dev.yml文件内容到ruoyi-test-dev.yml配置内容里, 并修改相关配置数据库redis等

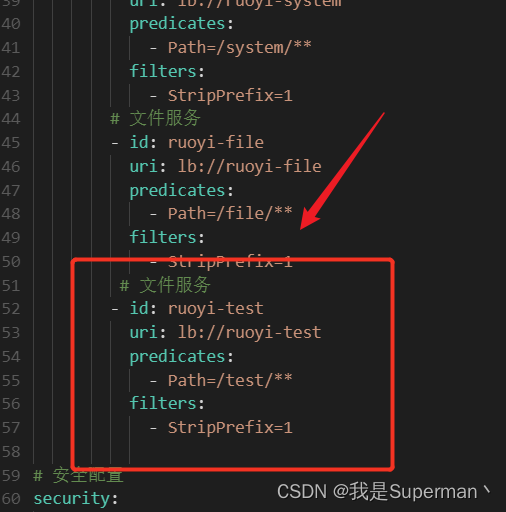

2 在nacos的网关的配置中新增路由节点

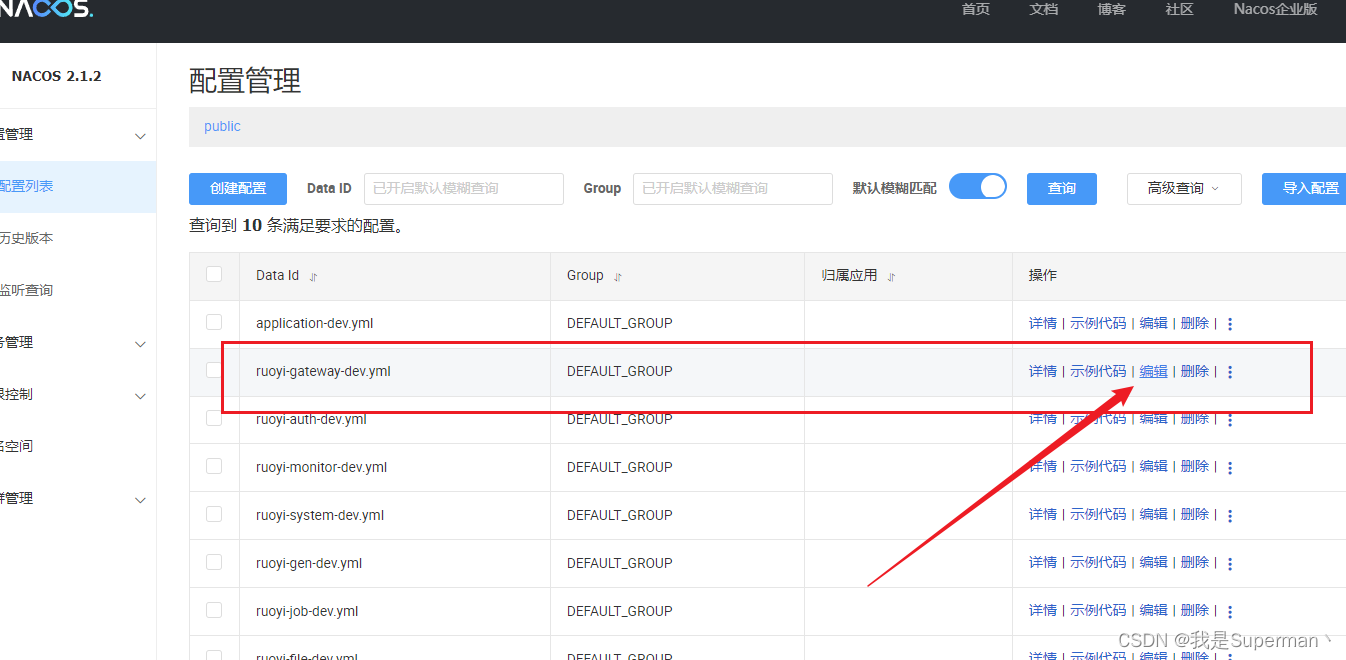

nacos配置列表选择ruoyi-gateway-dev.yml编辑 然后发布

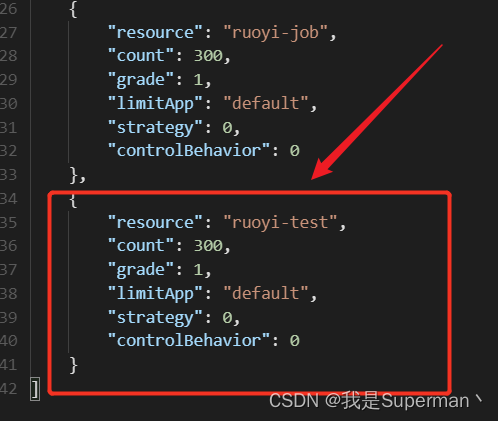

3. 在nacos的网关的配置中新增路由节点

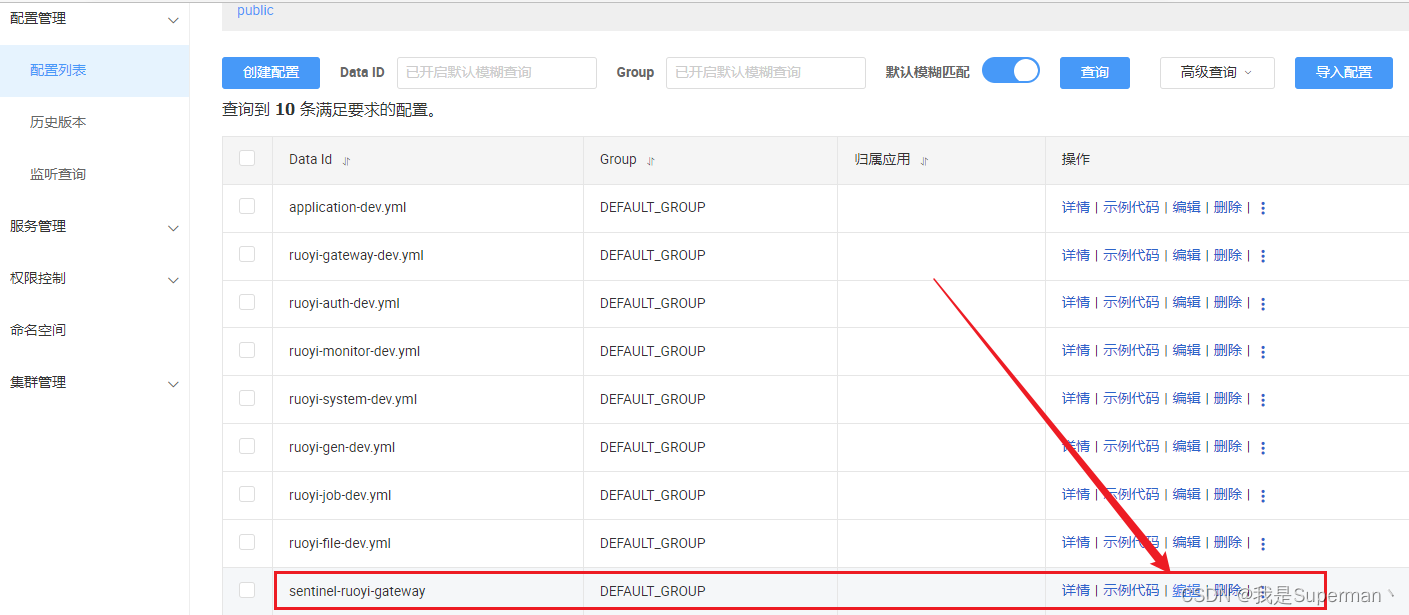

nacos配置列表选择sentinel-ruoyi-gatewayl编辑





完成之后就可以启动子模块了

RuoYiTestApplication.java

参考：后台手册 | RuoYi
