Record RuoYi Microservice System Deployment: Docker-Compose + Nginx + Nacos20.3集群 + seata + sentinel
基于docker-compose 来部署若依的docker 需要的环境
·
𝑰’𝒎 𝒉𝒉𝒈, 𝑰 𝒂𝒎 𝒂 𝒈𝒓𝒂𝒅𝒖𝒂𝒕𝒆 𝒔𝒕𝒖𝒅𝒆𝒏𝒕 𝒇𝒓𝒐𝒎 𝑵𝒂𝒏𝒋𝒊𝒏𝒈, 𝑪𝒉𝒊𝒏𝒂.
- 🏫 𝑺𝒉𝒄𝒐𝒐𝒍: 𝑯𝒐𝒉𝒂𝒊 𝑼𝒏𝒊𝒗𝒆𝒓𝒔𝒊𝒕𝒚
- 🌱 𝑳𝒆𝒂𝒓𝒏𝒊𝒏𝒈: 𝑰’𝒎 𝒄𝒖𝒓𝒓𝒆𝒏𝒕𝒍𝒚 𝒍𝒆𝒂𝒓𝒏𝒊𝒏𝒈 𝒅𝒆𝒔𝒊𝒈𝒏 𝒑𝒂𝒕𝒕𝒆𝒓𝒏, 𝑳𝒆𝒆𝒕𝒄𝒐𝒅𝒆, 𝒅𝒊𝒔𝒕𝒓𝒊𝒃𝒖𝒕𝒆𝒅 𝒔𝒚𝒔𝒕𝒆𝒎, 𝒎𝒊𝒅𝒅𝒍𝒆𝒘𝒂𝒓𝒆 𝒂𝒏𝒅 𝒔𝒐 𝒐𝒏.
- 💓 𝑯𝒐𝒘 𝒕𝒐 𝒓𝒆𝒂𝒄𝒉 𝒎𝒆：𝑽𝑿
- 📚 𝑴𝒚 𝒃𝒍𝒐𝒈: 𝒉𝒕𝒕𝒑𝒔://𝒉𝒉𝒈𝒚𝒚𝒅𝒔.𝒃𝒍𝒐𝒈.𝒄𝒔𝒅𝒏.𝒏𝒆𝒕/
- 💼 𝑷𝒓𝒐𝒇𝒆𝒔𝒔𝒊𝒐𝒏𝒂𝒍 𝒔𝒌𝒊𝒍𝒍𝒔：𝒎𝒚 𝒅𝒓𝒆𝒂𝒎
1-1: Environment Description
- Nacos 2.0.3
- Nginx latest
- Seata 1.4.2
- MySQL 5.7
- Redis latest
- SentinelDashboard 1.7.2
1-2: Directory Tree
├── mysql
│ ├── config
│ └── data
│ ├── db2019
│ ├── mysql
│ ├── nacos_devtest
│ ├── performance_schema
│ ├── ry@002dcloud [error opening dir]
│ ├── ry@002dconfig [error opening dir]
│ ├── ry@002dseata [error opening dir]
│ ├── seata
│ ├── seata@002dserver
│ ├── seata_account
│ ├── seata_order
│ ├── seata_storage
│ └── sys
├── nacos
│ ├── cluster-logs
│ │ ├── nacos1
│ │ ├── nacos2
│ │ └── nacos3
│ ├── env
│ └── init.d
├── nginx
│ ├── config
│ ├── data
│ └── log
├── redis
│ └── data
└── seata
└── config
1-2: Create Network for Services.
From my point of view, deployment won’t be finished once time. So everytime you use docker-compose to create containers, ips of containers will change. How do we avoid this question? We just allocate one ip to each container before using docker-compse. For example.
version: '2'
services:
nginx:
image: nginx:1.13.12
container_name: nginx
restart: always
networks:
extnetwork:
ipv4_address: 172.19.0.2
networks:
extnetwork:
ipam:
config:
- subnet: 172.19.0.0/16
gateway: 172.19.0.1
If we construct a nginx service, we create a network and allocate 172.19.0.2 to nginx.
1-2: MySQL 5.7
Nacos cluster deployment depends on MySQL. So we deploy MySQL firstly.
- docker-compose.yml
mysql:
container_name: royi-mysql
# 最新的mysql8版本
image: mysql:5.7
environment:
# mysql root用户密码
MYSQL_ROOT_PASSWORD: root
TZ: Asia/Shanghai
command:
--default-authentication-plugin=mysql_native_password
--character-set-server=utf8mb4
--collation-server=utf8mb4_general_ci
--explicit_defaults_for_timestamp=true
--lower_case_table_names=1
--max_allowed_packet=128M;
volumes:
# mysql的数据文件
- ./mysql/data:/var/lib/mysql
# mysql配置文件
- ./mysql/config:/etc/mysql/conf.d
ports:
- "3306:3306"
networks:
ruoyinet:
ipv4_address: 172.1.0.8
1-3: Nacos 2.0.3 Cluster Deployment
The main step is to deploy nacos servie. In this place, I use docker-compose to finish it.
- docker-compose.yml
nacos1:
hostname: nacos1
container_name: royi-nacos1
image: nacos/nacos-server:latest
volumes:
# 需要添加mysql8的插件
#- ./nacos/plugins/mysql/:/home/nacos/plugins/mysql/
# 把日志文件映射出来
- ./nacos/cluster-logs/nacos1:/home/nacos/logs
# 把配置文件映射出来
- ./nacos/init.d/custom.properties:/home/nacos/init.d/custom.properties
environment: # 设置环境变量,相当于docker run命令中的-e
- JVM_XMS=512m
- JVM_XMX=512m
- JVM_XMN=128m
- TZ=Asia/Shanghai
#- MODE=standalone
ports:
- "8848:8848"
- "9848:9848"
- "9555:9555"
env_file:
# 集群配置文件
- ./nacos/env/nacos-hostname.env
#restart: always
depends_on:
- mysql
networks:
ruoyinet:
ipv4_address: 172.1.0.7
nacos2:
hostname: nacos2
image: nacos/nacos-server:latest
container_name: royi-nacos2
volumes:
#- ./nacos/plugins/mysql/:/home/nacos/plugins/mysql/
- ./nacos/cluster-logs/nacos2:/home/nacos/logs
- ./nacos/init.d/custom.properties:/home/nacos/init.d/custom.properties
environment: # 设置环境变量,相当于docker run命令中的-e
- JVM_XMS=512m
- JVM_XMX=512m
- JVM_XMN=128m
- TZ=Asia/Shanghai
ports:
- "8849:8848"
env_file:
- ./nacos/env/nacos-hostname.env
#restart: always
depends_on:
- mysql
networks:
ruoyinet:
ipv4_address: 172.1.0.6
nacos3:
hostname: nacos3
image: nacos/nacos-server:latest
container_name: royi-nacos3
volumes:
#- ./nacos/plugins/mysql/:/home/nacos/plugins/mysql/
- ./nacos/cluster-logs/nacos3:/home/nacos/logs
- ./nacos/init.d/custom.properties:/home/nacos/init.d/custom.properties
environment: # 设置环境变量,相当于docker run命令中的-e
- JVM_XMS=512m
- JVM_XMX=512m
- JVM_XMN=128m
- TZ=Asia/Shanghai
ports:
- "8850:8848"
env_file:
- ./nacos/env/nacos-hostname.env
#restart: always
depends_on:
- mysql
networks:
ruoyinet:
ipv4_address: 172.1.0.5
- custom.properties
nacos.naming.empty-service.auto-clean=true
nacos.naming.empty-service.clean.initial-delay-ms=50000
nacos.naming.empty-service.clean.period-time-ms=30000
management.endpoints.web.exposure.include=*
management.metrics.export.elastic.enabled=false
management.metrics.export.influx.enabled=false
server.tomcat.accesslog.enabled=true
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i
server.tomcat.basedir=
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**
nacos.core.auth.system.type=nacos
nacos.core.auth.enabled=false
nacos.core.auth.default.token.expire.seconds=18000
nacos.core.auth.default.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789
nacos.core.auth.caching.enabled=true
nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.server.identity.key=serverIdentity
nacos.core.auth.server.identity.value=security
nacos.istio.mcp.server.enabled=false
- nacos-hostname.env
#nacos dev env
PREFER_HOST_MODE=hostname
# docker实例别名，可以换成ip
NACOS_SERVERS=nacos1:8848 nacos2:8848 nacos3:8848
MYSQL_SERVICE_HOST=mysql
# 指定保存数据的数据库名称
MYSQL_SERVICE_DB_NAME=ry-config
# 访问mysql端口
MYSQL_SERVICE_PORT=3306
# 访问mysql的用户名
MYSQL_SERVICE_USER=root
# 访问mysql的密码
MYSQL_SERVICE_PASSWORD=root
- ry_config_2021xxxx.sql
Create db ry-config and import sql file

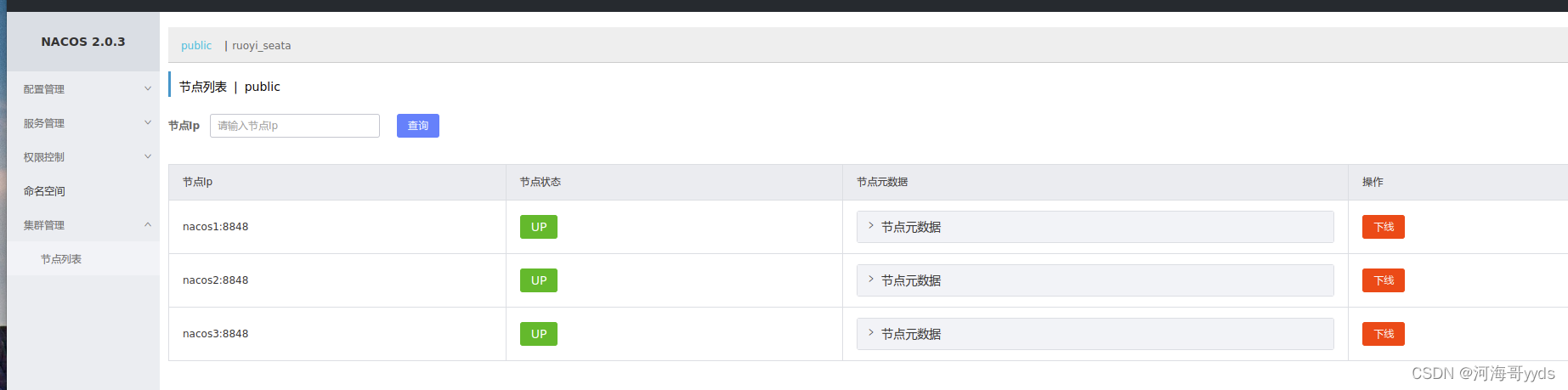

Success:
1-4: Nginx Reverse Proxy for Nacos Cluster
As we know, we can use nginx to finish load balance. Instead of exposing nacos ports to users, we only need to expose nginx ports. What we should do is modifying the nginx.conf and restart our container.
- docker-compose.yml
nginx:
#restart: always
image: nginx:latest
container_name: royi-nginx
ports:
- "8881:8881"
- "9881:9881"
- "443:443"
environment:
TZ: Asia/Shanghai
volumes:
- ./nginx/config/nginx.conf:/etc/nginx/nginx.conf
- ./nginx/data/:/usr/share/nginx/html/
- ./nginx/log/:/var/log/nginx/
networks:
ruoyinet:
ipv4_address: 172.1.0.4
- nginx.conf
user www-data;
worker_processes auto;
pid /run/nginx.pid;
include /etc/nginx/modules-enabled/*.conf;
events {
worker_connections 768;
# multi_accept on;
}
stream {
upstream nacosGrpc {
server 172.1.0.7:9848 weight=10;
server 172.1.0.6:9848 weight=10;
server 172.1.0.5:9848 weight=10;
}
server {
listen 9881;
proxy_pass nacosGrpc;
}
}
http {
##
# Basic Settings
##
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;
# server_tokens off;
# server_names_hash_bucket_size 64;
# server_name_in_redirect off;
include /etc/nginx/mime.types;
default_type application/octet-stream;
##
# SSL Settings
##
ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3; # Dropping SSLv3, ref: POODLE
ssl_prefer_server_ciphers on;
##
# Logging Settings
##
access_log /var/log/nginx/access.log;
error_log /var/log/nginx/error.log;
##
# Gzip Settings
##
gzip on;
# gzip_vary on;
# gzip_proxied any;
# gzip_comp_level 6;
# gzip_buffers 16 8k;
# gzip_http_version 1.1;
# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;
upstream nacos {
server 172.1.0.7:8848 weight=10;
server 172.1.0.6:8848 weight=10;
server 172.1.0.5:8848 weight=10;
}
server{
listen 8881;
server_name localhost;
location / {
proxy_pass http://nacos;
}
}
##
# Virtual Host Configs
##
include /etc/nginx/conf.d/*.conf;
include /etc/nginx/sites-enabled/*;
}
#mail {
# # See sample authentication script at:
# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript
#
# # auth_http localhost/auth.php;
# # pop3_capabilities "TOP" "USER";
# # imap_capabilities "IMAP4rev1" "UIDPLUS";
#
# server {
# listen localhost:110;
# protocol pop3;
# proxy on;
# }
#
# server {
# listen localhost:143;
# protocol imap;
# proxy on;
# }
#}
Tips:
- Stream is used to grpc service. You should set this config, the module of ruoyi will fail for some errors otherwise.
- The ips must be those that we allocated for each nacos service container. Services communicate each other in docker network
ruoyinet
Success:

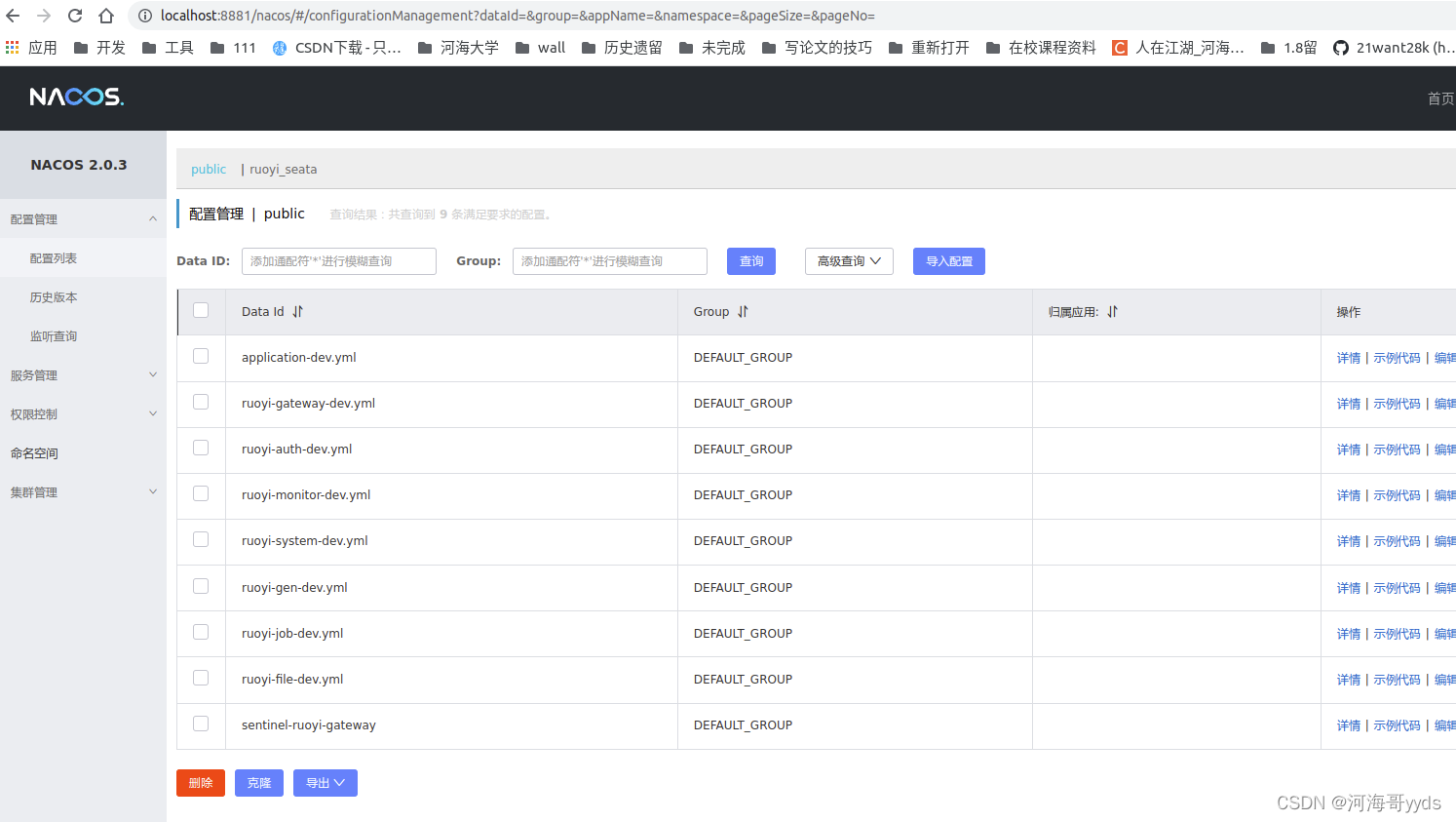

We can input localhost:8881/nacos in chome to access nacos:
1-5: Redis
- docker-compose.yml
redis:
image: redis:latest
#restart: always
container_name: ruoyi-redis
ports:
- "6379:6379"
environment:
TZ: Asia/Shanghai
volumes:
- ./redis/redis.conf:/etc/redis/redis.conf
- ./redis/data:/data
command: redis-server /etc/redis/redis.conf
privileged: true
networks:
ruoyinet:
ipv4_address: 172.1.0.3
1-6: Seata Deployment Based on Nacos
- docker-compose.yml
seata-server-1.4.2:
image: seataio/seata-server:1.4.2
container_name: ruoyi-seata
hostname: seata-server
ports:
- "8091:8091"
environment:
# 指定seata服务启动端口
- SEATA_PORT=8091
# 注册到nacos上的ip。客户端将通过该ip访问seata服务。
# 注意公网ip和内网ip的差异。
- SEATA_IP=127.0.0.1
- SEATA_CONFIG_NAME=file:/root/seata-config/registry
- TZ=Asia/Shanghai
volumes:
# 因为registry.conf中是nacos配置中心，只需要把registry.conf放到./seata-server/config文件夹中
- "./seata/config:/root/seata-config"
# network_mode: "host"
- registry.conf
registry {
type = "nacos"
nacos {
# seata服务注册在nacos上的别名，客户端通过该别名调用服务
application = "seata-server"
# 请根据实际生产环境配置nacos服务的ip和端口
serverAddr = "172.1.0.4:8881"
# nacos上指定的namespace
namespace = "2b19e55b-6325-4d48-87f1-7958f86d0053"
group = "SEATA_GROUP"
cluster = "default"
username = "nacos"
password = "nacos"
}
}
config {
type = "nacos"
nacos {
# 请根据实际生产环境配置nacos服务的ip和端口
serverAddr = "172.1.0.4:8881"
# nacos上指定的namespace1
namespace = "2b19e55b-6325-4d48-87f1-7958f86d0053"
group = "SEATA_GROUP"
username = "nacos"
password = "nacos"
# 从v1.4.2版本开始，已支持从一个Nacos dataId中获取所有配置信息,你只需要额外添加一个dataId配置项
#dataId: "seataServer.properties"
}
}

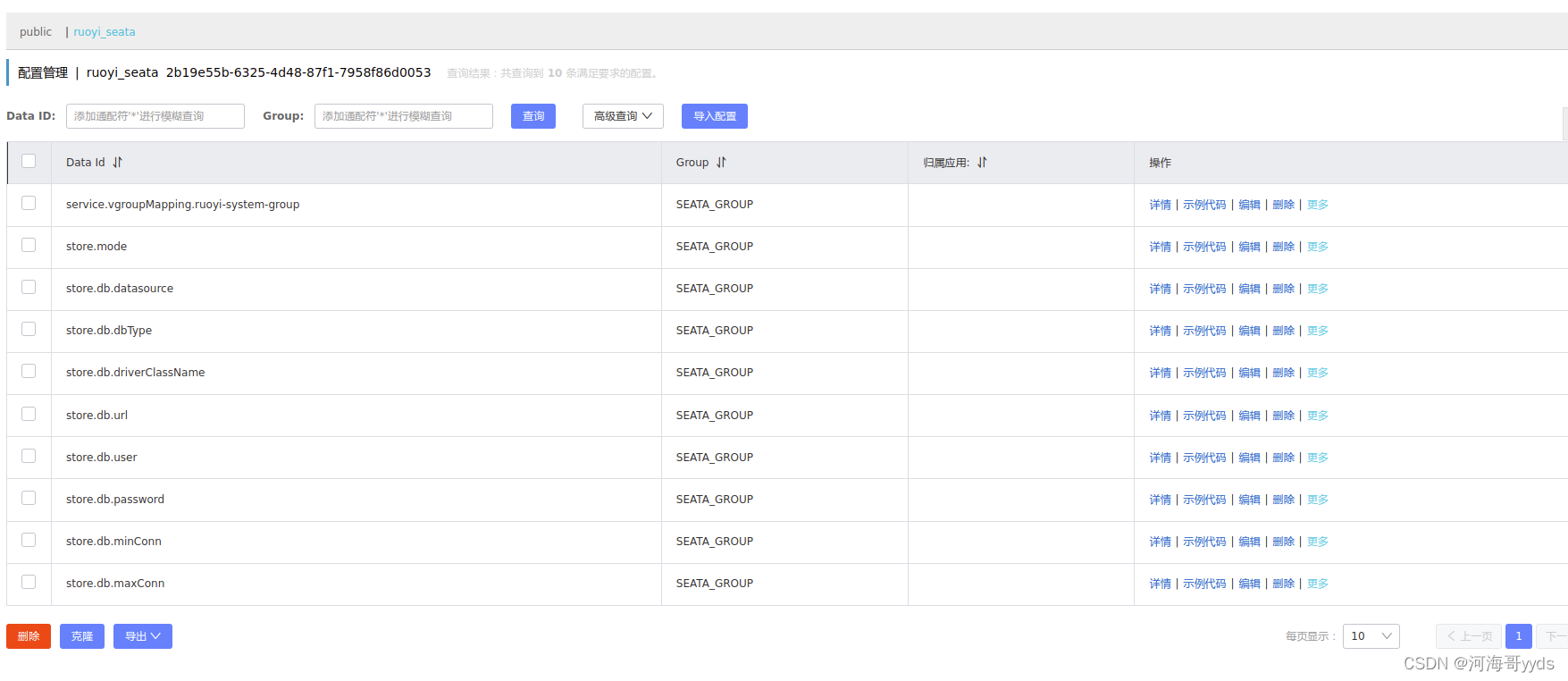

- config.txt
service.vgroupMapping.ruoyi-system-group=default
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.jdbc.Driver
store.db.url=jdbc:mysql://172.1.0.8:3306/ry-seata?useUnicode=true
store.db.user=root
store.db.password=root
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000
Reference: seata nacos deployment official webHowever, the method of using seataServer.properties failed. So I use one shell script to finish this problem.
- shell script
#!/bin/sh
# Copyright 1999-2019 Seata.io Group.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at、
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
while getopts ":h:p:g:t:u:w:" opt
do
case $opt in
h)
host=$OPTARG
;;
p)
port=$OPTARG
;;
g)
group=$OPTARG
;;
t)
tenant=$OPTARG
;;
u)
username=$OPTARG
;;
w)
password=$OPTARG
;;
?)
echo " USAGE OPTION: $0 [-h host] [-p port] [-g group] [-t tenant] [-u username] [-w password] "
exit 1
;;
esac
done
if [ -z ${host} ]; then
host=localhost
fi
if [ -z ${port} ]; then
port=8848
fi
if [ -z ${group} ]; then
group="SEATA_GROUP"
fi
if [ -z ${tenant} ]; then
tenant=""
fi
if [ -z ${username} ]; then
username=""
fi
if [ -z ${password} ]; then
password=""
fi
nacosAddr=$host:$port
contentType="content-type:application/json;charset=UTF-8"
echo "set nacosAddr=$nacosAddr"
echo "set group=$group"
urlencode() {
length="${#1}"
i=0
while [ $length -gt $i ]; do
char="${1:$i:1}"
case $char in
[a-zA-Z0-9.~_-]) printf $char ;;
*) printf '%%%02X' "'$char" ;;
esac
i=`expr $i + 1`
done
}
failCount=0
tempLog=$(mktemp -u)
function addConfig() {
dataId=`urlencode $1`
content=`urlencode $2`
curl -X POST -H "${contentType}" "http://$nacosAddr/nacos/v1/cs/configs?dataId=$dataId&group=$group&content=$content&tenant=$tenant&username=$username&password=$password" >"${tempLog}" 2>/dev/null
if [ -z $(cat "${tempLog}") ]; then
echo " Please check the cluster status. "
exit 1
fi
if [ "$(cat "${tempLog}")" == "true" ]; then
echo "Set $1=$2 successfully "
else
echo "Set $1=$2 failure "
failCount=`expr $failCount + 1`
fi
}
count=0
COMMENT_START="#"
for line in $(cat $(dirname "$PWD")/config.txt | sed s/[[:space:]]//g); do
if [[ "$line" =~ ^"${COMMENT_START}".* ]]; then
continue
fi
count=`expr $count + 1`
key=${line%%=*}
value=${line#*=}
addConfig "${key}" "${value}"
done
echo "========================================================================="
echo " Complete initialization parameters, total-count:$count , failure-count:$failCount "
echo "========================================================================="
if [ ${failCount} -eq 0 ]; then
echo " Init nacos config finished, please start seata-server. "
else
echo " init nacos config fail. "
fi
Then use the next orders to import the config.txt.
sh nacos-config.sh -h localhost -p 8848 -g SEATA_GROUP(group) -t 8f86ea8c-2a39-4728-bade-4af9ebece539(namespace) -u nacos -w naco
Success:
1-7: Sentinel Deployment
- download sentinel-dashboard-1.7.2.jar
- use Dockerfile to build image.
Dockerfile
FROM openjdk:8
#使用镜像
RUN sed -i "s/archive.ubuntu./mirrors.aliyun./g" /etc/apt/sources.list
RUN sed -i "s/deb.debian.org/mirrors.aliyun.com/g" /etc/apt/sources.list
RUN sed -i "s/security.debian.org/mirrors.aliyun.com\/debian-security/g" /etc/apt/sources.list
#复制上下文目录下的jar包到容器里 使用COPY命令亦可
ADD sentinel-dashboard-1.7.2.jar sentinel-dashboard-1.7.2.jar
EXPOSE 8080
#指定容器启动程序及参数 <ENTRYPOINT> "<CMD>"
ENTRYPOINT ["java","-jar","sentinel-dashboard-1.7.2.jar"]
docker build -t sentinel-dashboard-1.7.2 .
REPOSITORY TAG IMAGE ID CREATED SIZE
sentinel-dashboard-1.7.2 latest 442c56e77ebe 2 weeks ago 547MB
- docker-compose.yml
sentinel-dashboard-1.7.2:
image: sentinel-dashboard-1.7.2
container_name: ruoyi-sentinel-dashboard
environment:
JAVA_OPTS: "-Dserver.port=8080 -Dcsp.sentinel.dashboard.server=localhost:8080 -Dproject.name=sentinel-dashboard -Djava.security.egd=file:/dev/./urandom -Dcsp.sentinel.api.port=8719"
TZ: Asia/Shanghai
ports: #避免出现端口映射错误，建议采用字符串格式 8080端口为Dockerfile中EXPOSE端口
- "58080:8080"
- "8719:8719"
volumes:
- ./sentinel/logs:/root/logs
networks:
ruoyinet:
ipv4_address: 172.1.0.9
快速构建 Web 应用程序
更多推荐
0
0- 0
已为社区贡献2条内容
所有评论(0)
