1、Shiro 配置

shiro:
  user:
    # 登录地址
    loginUrl: /login
    # 权限认证失败地址
    unauthorizedUrl: /unauth
    # 首页地址
    indexUrl: /index
    # 验证码开关
    captchaEnabled: true
    # 验证码类型 math 数组计算 char 字符
    captchaType: math
  cookie:
    # 设置Cookie的域名 默认空，即当前访问的域名
    domain:
    # 设置cookie的有效访问路径
    path: /
    # 设置HttpOnly属性
    httpOnly: true
    # 设置Cookie的过期时间，天为单位
    maxAge: 30
    # 设置密钥，务必保持唯一性（生成方式，直接拷贝到main运行即可）KeyGenerator keygen = KeyGenerator.getInstance("AES"); SecretKey deskey = keygen.generateKey(); System.out.println(Base64.encodeToString(deskey.getEncoded()));
    cipherKey: zSyK5Kp6PZAAjlT+eeNMlg==
  session:
    # Session超时时间，-1代表永不过期（默认30分钟）
    expireTime: 30
    # 同步session到数据库的周期（默认1分钟）
    dbSyncPeriod: 1
    # 相隔多久检查一次session的有效性，默认就是10分钟
    validationInterval: 10
    # 同一个用户最大会话数，比如2的意思是同一个账号允许最多同时两个人登录（默认-1不限制）
    maxSession: -1
    # 踢出之前登录的/之后登录的用户，默认踢出之前登录的用户
    kickoutAfter: false

1.1、配置集合

/**
 * 权限配置加载
 */
@Configuration
public class ShiroConfig
{
    1、加入 Ehcache 缓存管理器
    2、加入自定义Realm
    3、自定义Session并将Session数据保存到数据库
    4、加入 SecurityManager 安全管理器
    5、设置 Shiro 过滤器配置
    6、RemeberMeManager 记住我管理器的创建
    7、限制同一用户多设备登录
    8、开启 Shiro 注解
}

1、加入 Ehcache 缓存管理器

通过读取配置文件创建CacheManager，并通过EhCacheManager进行管理

	/**
     * 缓存管理器 使用Ehcache实现
     */
    @Bean
    public EhCacheManager getEhCacheManager()
    {
        net.sf.ehcache.CacheManager cacheManager = net.sf.ehcache.CacheManager.getCacheManager("ruoyi");
        EhCacheManager em = new EhCacheManager();
        if (StringUtils.isNull(cacheManager))
        {
            em.setCacheManager(new net.sf.ehcache.CacheManager(getCacheManagerConfigFileInputStream()));
            return em;
        }
        else
        {
            em.setCacheManager(cacheManager);
            return em;
        }
    }

    /**
     * 返回配置文件流 避免ehcache配置文件一直被占用，无法完全销毁项目重新部署
     */
    protected InputStream getCacheManagerConfigFileInputStream()
    {
        String configFile = "classpath:ehcache/ehcache-shiro.xml";
        InputStream inputStream = null;
        try
        {
            inputStream = ResourceUtils.getInputStreamForPath(configFile);
            byte[] b = IOUtils.toByteArray(inputStream);
            InputStream in = new ByteArrayInputStream(b);
            return in;
        }
        catch (IOException e)
        {
            throw new ConfigurationException(
                    "Unable to obtain input stream for cacheManagerConfigFile [" + configFile + "]", e);
        }
        finally
        {
            IOUtils.closeQuietly(inputStream);
        }
    }

2、加入自定义Realm

将授权信息保存到 Ehcache 中，避免每个接口都去数据库查询权限信息

	/**
     * 自定义Realm
     */
    @Bean
    public UserRealm userRealm(EhCacheManager cacheManager)
    {
        UserRealm userRealm = new UserRealm();
        userRealm.setAuthorizationCacheName(Constants.SYS_AUTH_CACHE);
        userRealm.setCacheManager(cacheManager);
        return userRealm;
    }

/**
 * 自定义Realm 处理登录 权限
 */
public class UserRealm extends AuthorizingRealm
{
    private static final Logger log = LoggerFactory.getLogger(UserRealm.class);

    @Autowired
    private ISysMenuService menuService;

    @Autowired
    private ISysRoleService roleService;

    @Autowired
    private SysLoginService loginService;

    /**
     * 授权
     */
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection arg0)
    {
        SysUser user = ShiroUtils.getSysUser();
        // 角色列表
        Set<String> roles = new HashSet<String>();
        // 功能列表
        Set<String> menus = new HashSet<String>();
        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();
        // 管理员拥有所有权限
        if (user.isAdmin())
        {
            info.addRole("admin");
            info.addStringPermission("*:*:*");
        }
        else
        {
            roles = roleService.selectRoleKeys(user.getUserId());
            menus = menuService.selectPermsByUserId(user.getUserId());
            // 角色加入AuthorizationInfo认证对象
            info.setRoles(roles);
            // 权限加入AuthorizationInfo认证对象
            info.setStringPermissions(menus);
        }
        return info;
    }

    /**

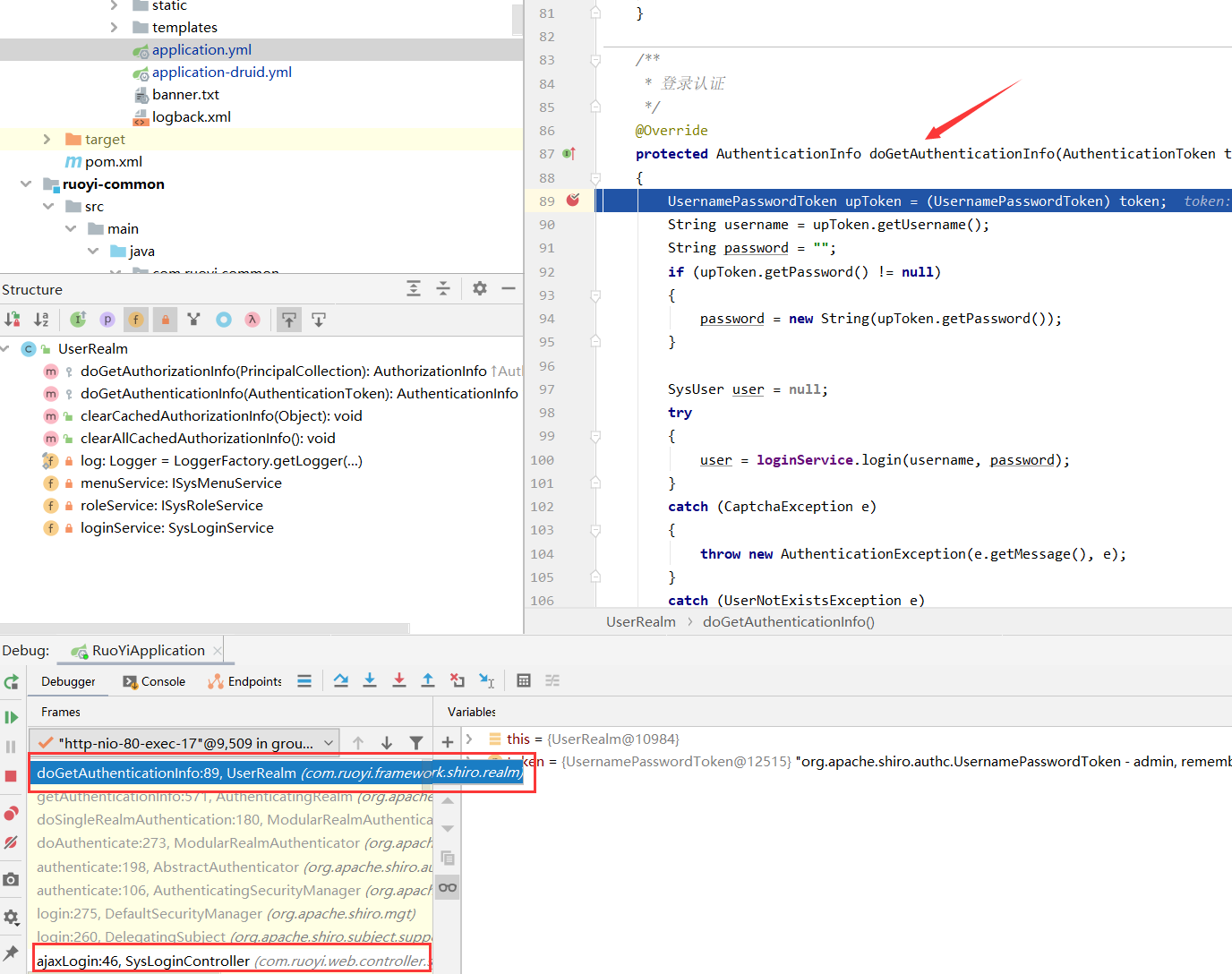

     * 登录认证
     */
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException
    {
        UsernamePasswordToken upToken = (UsernamePasswordToken) token;
        String username = upToken.getUsername();
        String password = "";
        if (upToken.getPassword() != null)
        {
            password = new String(upToken.getPassword());
        }

        SysUser user = null;
        try
        {
            user = loginService.login(username, password);
        }
        catch (CaptchaException e)
        {
            throw new AuthenticationException(e.getMessage(), e);
        }
        catch (UserNotExistsException e)
        {
            throw new UnknownAccountException(e.getMessage(), e);
        }
        catch (UserPasswordNotMatchException e)
        {
            throw new IncorrectCredentialsException(e.getMessage(), e);
        }
        catch (UserPasswordRetryLimitExceedException e)
        {
            throw new ExcessiveAttemptsException(e.getMessage(), e);
        }
        catch (UserBlockedException e)
        {
            throw new LockedAccountException(e.getMessage(), e);
        }
        catch (RoleBlockedException e)
        {
            throw new LockedAccountException(e.getMessage(), e);
        }
        catch (Exception e)
        {
            log.info("对用户[" + username + "]进行登录验证..验证未通过{}", e.getMessage());
            throw new AuthenticationException(e.getMessage(), e);
        }
        SimpleAuthenticationInfo info = new SimpleAuthenticationInfo(user, password, getName());
        return info;
    }

    /**
     * 清理指定用户授权信息缓存
     */
    public void clearCachedAuthorizationInfo(Object principal)
    {
        SimplePrincipalCollection principals = new SimplePrincipalCollection(principal, getName());
        this.clearCachedAuthorizationInfo(principals);
    }

    /**
     * 清理所有用户授权信息缓存
     */
    public void clearAllCachedAuthorizationInfo()
    {
        Cache<Object, AuthorizationInfo> cache = getAuthorizationCache();
        if (cache != null)
        {
            for (Object key : cache.keys())
            {
                cache.remove(key);
            }
        }
    }
}

其中清理所有用户授权信息缓存的调用时机为 更新菜单或者角色信息，直接删除所有用户的授权信息，点解任意接口的时候会进行授权信息的获取，而这时的授权信息的最新的，无需用户登出再登录操作。

3、加入 SecurityManager 安全管理器

	/**
     * 安全管理器
     */
    @Bean
    public SecurityManager securityManager(UserRealm userRealm)
    {
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        // 设置realm.
        securityManager.setRealm(userRealm);
        // 记住我
        securityManager.setRememberMeManager(rememberMeManager());
        // 注入缓存管理器;
        securityManager.setCacheManager(getEhCacheManager());
        // session管理器
        securityManager.setSessionManager(sessionManager());
        return securityManager;
    }

4、设置 Shiro 过滤器配置

对访问路径设置过滤器链，通过key-value的形式注册过滤器

	/**
     * Shiro过滤器配置
     */
    @Bean
    public ShiroFilterFactoryBean shiroFilterFactoryBean(SecurityManager securityManager)
    {
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        // Shiro的核心安全接口,这个属性是必须的
        shiroFilterFactoryBean.setSecurityManager(securityManager);
        // 身份认证失败，则跳转到登录页面的配置
        shiroFilterFactoryBean.setLoginUrl(loginUrl);
        // 权限认证失败，则跳转到指定页面
        shiroFilterFactoryBean.setUnauthorizedUrl(unauthorizedUrl);
        // Shiro连接约束配置，即过滤链的定义
        LinkedHashMap<String, String> filterChainDefinitionMap = new LinkedHashMap<>();
        // 对静态资源设置匿名访问
        filterChainDefinitionMap.put("/favicon.ico**", "anon");
        filterChainDefinitionMap.put("/ruoyi.png**", "anon");
        filterChainDefinitionMap.put("/html/**", "anon");
        filterChainDefinitionMap.put("/css/**", "anon");
        filterChainDefinitionMap.put("/docs/**", "anon");
        filterChainDefinitionMap.put("/fonts/**", "anon");
        filterChainDefinitionMap.put("/img/**", "anon");
        filterChainDefinitionMap.put("/ajax/**", "anon");
        filterChainDefinitionMap.put("/js/**", "anon");
        filterChainDefinitionMap.put("/ruoyi/**", "anon");
        filterChainDefinitionMap.put("/captcha/captchaImage**", "anon");
        // 退出 logout地址，shiro去清除session
        filterChainDefinitionMap.put("/logout", "logout");
        // 不需要拦截的访问
        filterChainDefinitionMap.put("/login", "anon,captchaValidate");
        // 注册相关
        filterChainDefinitionMap.put("/register", "anon,captchaValidate");
        // 系统权限列表
        // filterChainDefinitionMap.putAll(SpringUtils.getBean(IMenuService.class).selectPermsAll());

        Map<String, Filter> filters = new LinkedHashMap<String, Filter>();
        filters.put("onlineSession", onlineSessionFilter());
        filters.put("syncOnlineSession", syncOnlineSessionFilter());
        filters.put("captchaValidate", captchaValidateFilter());
        filters.put("kickout", kickoutSessionFilter());
        // 注销成功，则跳转到指定页面
        filters.put("logout", logoutFilter());
        shiroFilterFactoryBean.setFilters(filters);

        // 所有请求需要认证
        filterChainDefinitionMap.put("/**", "user,kickout,onlineSession,syncOnlineSession");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap);

        return shiroFilterFactoryBean;
    }

其中，各种过滤器的创建为：

	/**
     * 退出过滤器
     */
    public LogoutFilter logoutFilter()
    {
        LogoutFilter logoutFilter = new LogoutFilter();
        logoutFilter.setLoginUrl(loginUrl);
        return logoutFilter;
    }
	/**
     * 自定义在线用户处理过滤器
     */
    public OnlineSessionFilter onlineSessionFilter()
    {
        OnlineSessionFilter onlineSessionFilter = new OnlineSessionFilter();
        onlineSessionFilter.setLoginUrl(loginUrl);
        onlineSessionFilter.setOnlineSessionDAO(sessionDAO());
        return onlineSessionFilter;
    }

    /**
     * 自定义在线用户同步过滤器
     */
    public SyncOnlineSessionFilter syncOnlineSessionFilter()
    {
        SyncOnlineSessionFilter syncOnlineSessionFilter = new SyncOnlineSessionFilter();
        syncOnlineSessionFilter.setOnlineSessionDAO(sessionDAO());
        return syncOnlineSessionFilter;
    }

    /**
     * 自定义验证码过滤器
     */
    public CaptchaValidateFilter captchaValidateFilter()
    {
        CaptchaValidateFilter captchaValidateFilter = new CaptchaValidateFilter();
        captchaValidateFilter.setCaptchaEnabled(captchaEnabled);
        captchaValidateFilter.setCaptchaType(captchaType);
        return captchaValidateFilter;
    }

5、RemeberMeManager 记住我管理器的创建

通过返回名为 rememberMe 的Cookie实现记住我的功能

    /**
     * cookie 属性设置
     */
    public SimpleCookie rememberMeCookie()
    {
        SimpleCookie cookie = new SimpleCookie("rememberMe");
        cookie.setDomain(domain);
        cookie.setPath(path);
        cookie.setHttpOnly(httpOnly);
        cookie.setMaxAge(maxAge * 24 * 60 * 60);
        return cookie;
    }

    /**
     * 记住我
     */
    public CookieRememberMeManager rememberMeManager()
    {
        CookieRememberMeManager cookieRememberMeManager = new CookieRememberMeManager();
        cookieRememberMeManager.setCookie(rememberMeCookie());
        cookieRememberMeManager.setCipherKey(Base64.decode(cipherKey));
        return cookieRememberMeManager;
    }

6、限制同一用户多设备登录

	/**
     * 同一个用户多设备登录限制
     */
    public KickoutSessionFilter kickoutSessionFilter()
    {
        KickoutSessionFilter kickoutSessionFilter = new KickoutSessionFilter();
        kickoutSessionFilter.setCacheManager(getEhCacheManager());
        kickoutSessionFilter.setSessionManager(sessionManager());
        // 同一个用户最大的会话数，默认-1无限制；比如2的意思是同一个用户允许最多同时两个人登录
        kickoutSessionFilter.setMaxSession(maxSession);
        // 是否踢出后来登录的，默认是false；即后者登录的用户踢出前者登录的用户；踢出顺序
        kickoutSessionFilter.setKickoutAfter(kickoutAfter);
        // 被踢出后重定向到的地址；
        kickoutSessionFilter.setKickoutUrl("/login?kickout=1");
        return kickoutSessionFilter;
    }

**原理：**不同设备登录的时候会产生不同的sessionId，但是subject是一样的，通过统计sessionId的个数来判断用户登录了多少个不同设备

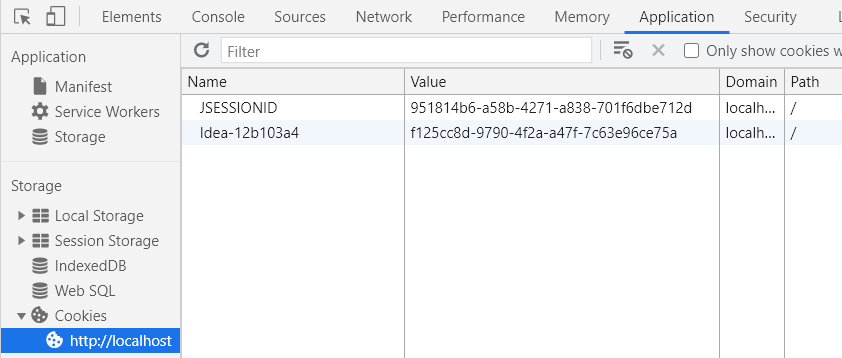

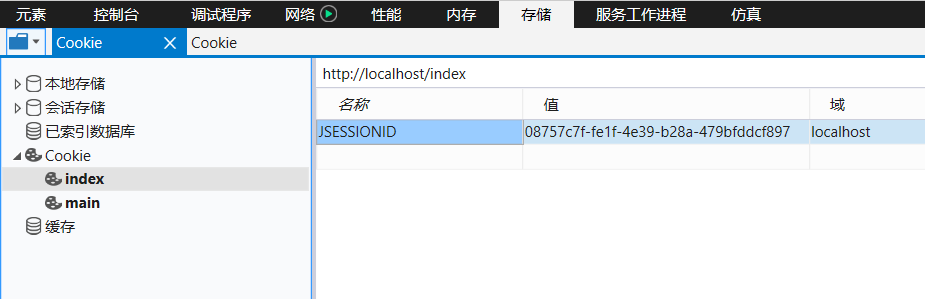

IE ：

Google：

/**
 * 登录帐号控制过滤器
 */
public class KickoutSessionFilter extends AccessControlFilter
{
    private final static ObjectMapper objectMapper = new ObjectMapper();

    /**
     * 同一个用户最大会话数
     **/
    private int maxSession = -1;

    /**
     * 踢出之前登录的/之后登录的用户 默认false踢出之前登录的用户
     **/
    private Boolean kickoutAfter = false;

    /**
     * 踢出后到的地址
     **/
    private String kickoutUrl;

    private SessionManager sessionManager;
    private Cache<String, Deque<Serializable>> cache;

    @Override
    protected boolean isAccessAllowed(ServletRequest servletRequest, ServletResponse servletResponse, Object o)
            throws Exception
    {
        return false;
    }

    @Override
    protected boolean onAccessDenied(ServletRequest request, ServletResponse response) throws Exception
    {
        Subject subject = getSubject(request, response);
        if (!subject.isAuthenticated() && !subject.isRemembered() || maxSession == -1)
        {
            // 如果没有登录或用户最大会话数为-1，直接进行之后的流程
            return true;
        }
        try
        {
            Session session = subject.getSession();
            // 当前登录用户
            SysUser user = ShiroUtils.getSysUser();
            String loginName = user.getLoginName();
            Serializable sessionId = session.getId();

            // 读取缓存用户 没有就存入
            Deque<Serializable> deque = cache.get(loginName);
            if (deque == null)
            {
                // 初始化队列
                deque = new ArrayDeque<Serializable>();
            }

            // 不同设备登录的时候会产生不同的sessionId，但是subject是一样的，通过统计sessionId的个数来判断用户登录了多少个
            // 如果队列里没有此sessionId，且用户没有被踢出；放入队列
            if (!deque.contains(sessionId) && session.getAttribute("kickout") == null)
            {
                // 将sessionId存入队列
                deque.push(sessionId);
                // 将用户的sessionId队列缓存
                cache.put(loginName, deque);
            }

            // 如果队列里的sessionId数超出最大会话数，开始踢人
            while (deque.size() > maxSession)
            {
                Serializable kickoutSessionId = null;
                // 是否踢出后来登录的，默认是false；即后者登录的用户踢出前者登录的用户；
                if (kickoutAfter)
                {
                    // 踢出后者
                    kickoutSessionId = deque.removeFirst();
                }
                else
                {
                    // 踢出前者
                    kickoutSessionId = deque.removeLast();
                }
                // 踢出后再更新下缓存队列
                cache.put(loginName, deque);

                try
                {
                    // 获取被踢出的sessionId的session对象
                    Session kickoutSession = sessionManager.getSession(new DefaultSessionKey(kickoutSessionId));
                    if (null != kickoutSession)
                    {
                        // 设置会话的kickout属性表示踢出了
                        kickoutSession.setAttribute("kickout", true);
                    }
                }
                catch (Exception e)
                {
                    // 面对异常，我们选择忽略
                }
            }

            // 如果被踢出了，(前者或后者)直接退出，重定向到踢出后的地址
            if ((Boolean) session.getAttribute("kickout") != null && (Boolean) session.getAttribute("kickout") == true)
            {
                // 退出登录
                subject.logout();
                saveRequest(request);
                return isAjaxResponse(request, response);
            }
            return true;
        }
        catch (Exception e)
        {
            return isAjaxResponse(request, response);
        }
    }

    private boolean isAjaxResponse(ServletRequest request, ServletResponse response) throws IOException
    {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;
        if (ServletUtils.isAjaxRequest(req))
        {
            AjaxResult ajaxResult = AjaxResult.error("您已在别处登录，请您修改密码或重新登录");
            ServletUtils.renderString(res, objectMapper.writeValueAsString(ajaxResult));
        }
        else
        {
            WebUtils.issueRedirect(request, response, kickoutUrl);
        }
        return false;
    }

    public void setMaxSession(int maxSession)
    {
        this.maxSession = maxSession;
    }

    public void setKickoutAfter(boolean kickoutAfter)
    {
        this.kickoutAfter = kickoutAfter;
    }

    public void setKickoutUrl(String kickoutUrl)
    {
        this.kickoutUrl = kickoutUrl;
    }

    public void setSessionManager(SessionManager sessionManager)
    {
        this.sessionManager = sessionManager;
    }

    // 设置Cache的key的前缀
    public void setCacheManager(CacheManager cacheManager)
    {
        // 必须和ehcache缓存配置中的缓存name一致
        this.cache = cacheManager.getCache(ShiroConstants.SYS_USERCACHE);
    }
}

7、开启 Shiro 注解

	/**
     * 开启Shiro注解通知器
     */
    @Bean
    public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor(
            @Qualifier("securityManager") SecurityManager securityManager)
    {
        AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor = new AuthorizationAttributeSourceAdvisor();
        authorizationAttributeSourceAdvisor.setSecurityManager(securityManager);
        return authorizationAttributeSourceAdvisor;
    }

2、登录

@GetMapping("/login")
public String login(HttpServletRequest request, HttpServletResponse response)
{
    // 如果是Ajax请求，返回Json字符串。
    if (ServletUtils.isAjaxRequest(request))
    {
        return ServletUtils.renderString(response, "{\"code\":\"1\",\"msg\":\"未登录或登录超时。请重新登录\"}");
    }

    return "login";
}

@PostMapping("/login")
@ResponseBody
public AjaxResult ajaxLogin(String username, String password, Boolean rememberMe)
{
    UsernamePasswordToken token = new UsernamePasswordToken(username, password, rememberMe);
    Subject subject = SecurityUtils.getSubject();
    try
    {
        subject.login(token);
        return success();
    }
    catch (AuthenticationException e)
    {
        String msg = "用户或密码错误";
        if (StringUtils.isNotEmpty(e.getMessage()))
        {
            msg = e.getMessage();
        }
        return error(msg);
    }
}

登录验证会由自定义 Realm 的 doGetAuthenticationInfo 方法进行验证

3、登出

自定义登出过滤器，在 Shiro 中已经配置，当调用登出接口 /logout 的时候会直接调用

/**
 * 退出过滤器
 */
public class LogoutFilter extends org.apache.shiro.web.filter.authc.LogoutFilter
{
    private static final Logger log = LoggerFactory.getLogger(LogoutFilter.class);

    /**
     * 退出后重定向的地址
     */
    private String loginUrl;

    public String getLoginUrl()
    {
        return loginUrl;
    }

    public void setLoginUrl(String loginUrl)
    {
        this.loginUrl = loginUrl;
    }

    @Override
    protected boolean preHandle(ServletRequest request, ServletResponse response) throws Exception
    {
        try
        {
            Subject subject = getSubject(request, response);
            String redirectUrl = getRedirectUrl(request, response, subject);
            try
            {
                SysUser user = ShiroUtils.getSysUser();
                if (StringUtils.isNotNull(user))
                {
                    String loginName = user.getLoginName();
                    // 记录用户退出日志
                    AsyncManager.me().execute(AsyncFactory.recordLogininfor(loginName, Constants.LOGOUT, MessageUtils.message("user.logout.success")));
                    // 清理缓存
                    SpringUtils.getBean(ISysUserOnlineService.class).removeUserCache(loginName, ShiroUtils.getSessionId());
                }
                // 退出登录
                subject.logout();
            }
            catch (SessionException ise)
            {
                log.error("logout fail.", ise);
            }
            issueRedirect(request, response, redirectUrl);
        }
        catch (Exception e)
        {
            log.error("Encountered session exception during logout.  This can generally safely be ignored.", e);
        }
        return false;
    }

    /**
     * 退出跳转URL
     */
    @Override
    protected String getRedirectUrl(ServletRequest request, ServletResponse response, Subject subject)
    {
        String url = getLoginUrl();
        if (StringUtils.isNotEmpty(url))
        {
            return url;
        }
        return super.getRedirectUrl(request, response, subject);
    }
}
